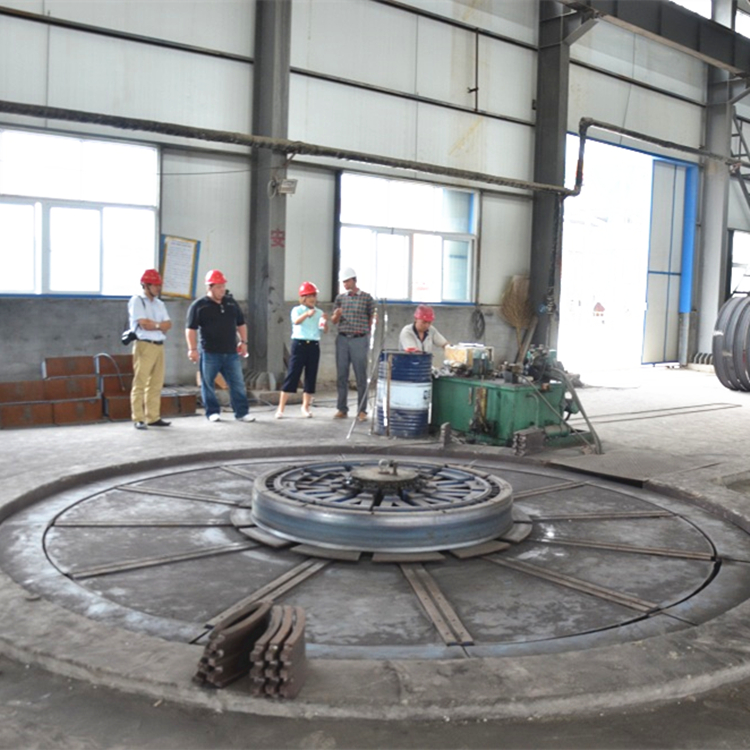

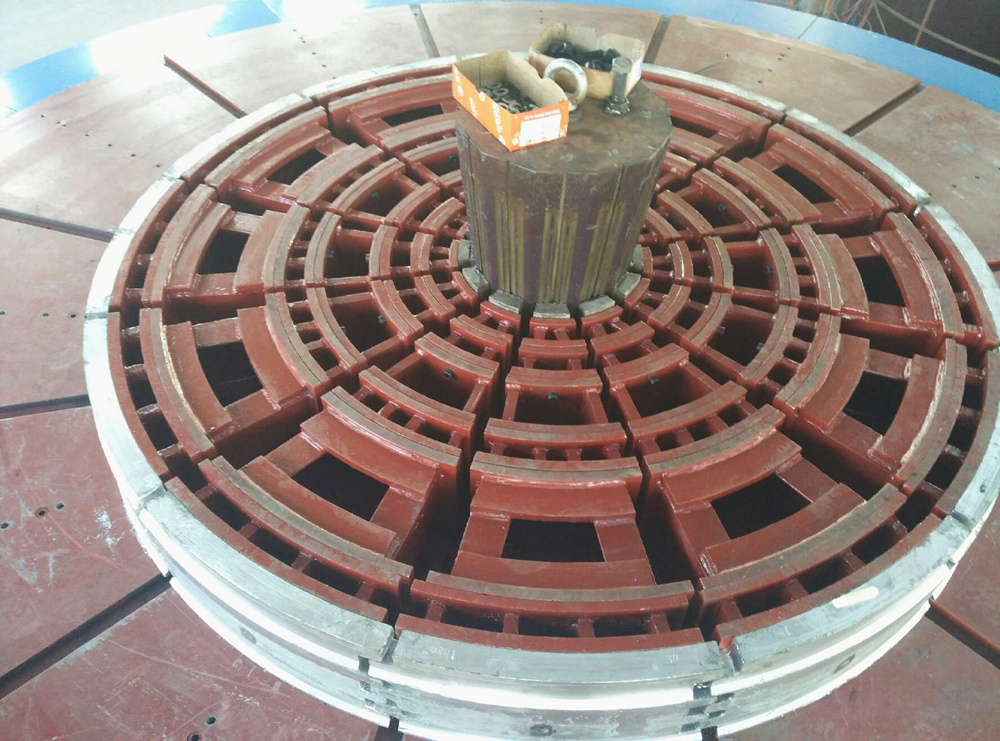

Spigot and Bell Port Expanding Machine for PCCP Pipe Production Line
It is used for expanding the spigot and bell port to requied size.
Main Technical
1. Name:Bell and Spigot Expander
2.Model: DN600--DN3200mm
3.Hydraulic Drive: diameter--500mm running trip--600mm
4. Digital Display/High Precision/the precision control under ±0.15mm
5. Application Plate Range:
Bell Plate Thickness: ≤12 Bell Plate Height:≤216
Spigot Plate Thickness: ≤22 Spigot Plate Height:≤205
6. Speed:3-5min/piece
7. Design Pressure: 31.5Mpa
Working Pressure: ≤20MPa
8. Motor Power: 23.5KW 3Phase/380V/50HZ
Our factory is a specialized manufacturer and exporter of PCCP Pipe Production Line/Concrete Pipe Making Machine/Concrete Pipe Molds in China for years, we supply and design PCCP Pipe Production Line/Concrete Pipe Making Machine/Concrete Pipe Moulds with over decade's of experience.
